Worktop or Wall Closing Unit

The easiest way to close different capsules sizes

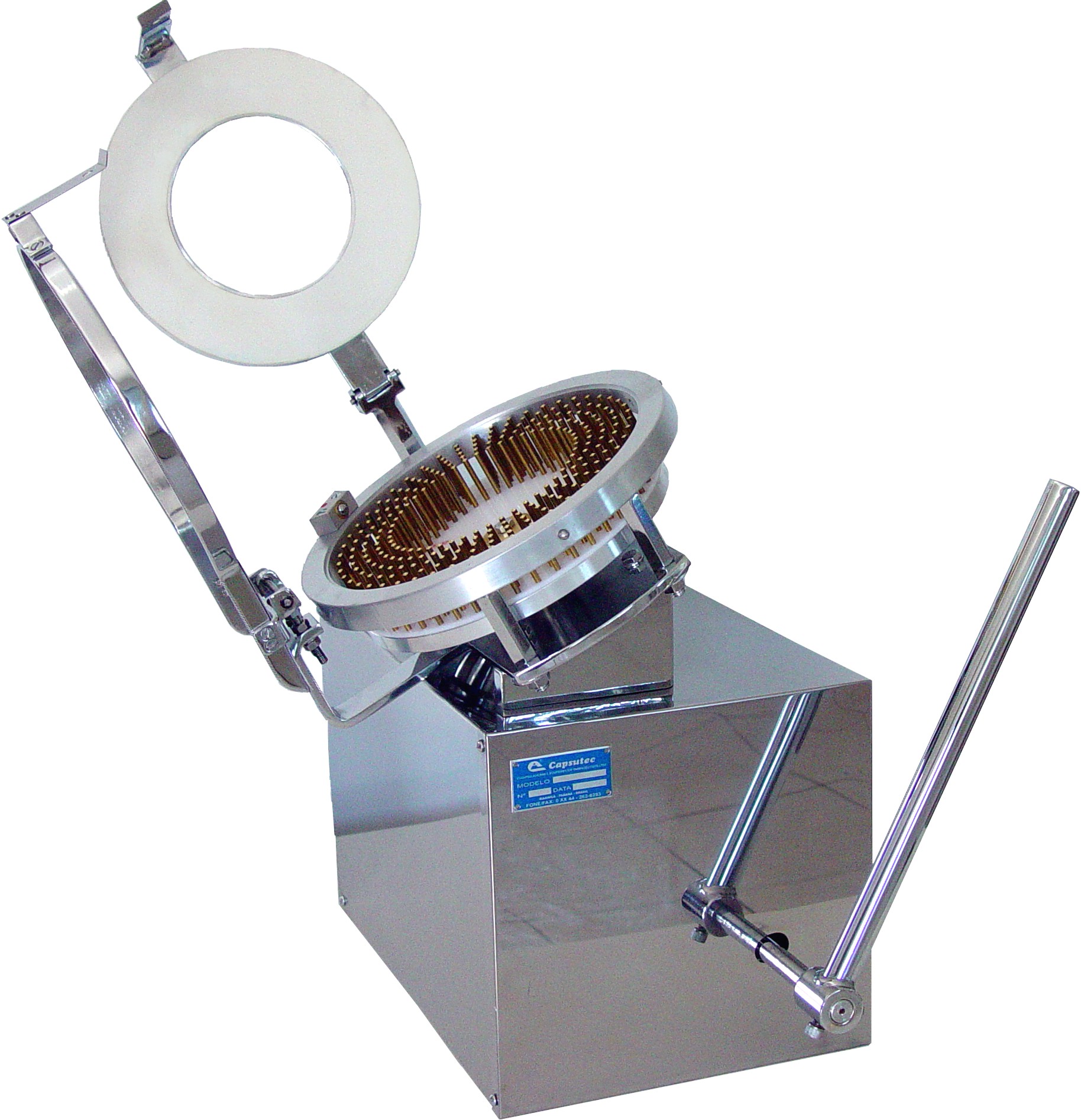

The Closing Unit was developed to close and lock the shells inside the disk set.
Capsutec semi-automatic capsule filling machines are originally equipped with one closing unit. However, you may need additional closing units when many operators need to close the shells at the same time (when the speed of encapsulation exceeds the speed of closing and locking the capsules, when many people need to use this unit at the same time), when you are working with different shell sizes and do not want to change this specific part or when you are working exclusively with capsule feeders.
The closing parts are available in the following manner: One part for size 00 capsules, one part for capsules 0, 1 and 2, plus another part for closing capsules sizes 3 and 4
The Closing Units are available in 2 different models: one for wall mounting and one for worktop mounting, according to the needs of each lab, and are operated in the same way as the closing units of the EMA 2000, EMA 2000 Special and ESA 10.000.
Worktop closing unit dimensions: 40 x 40 x 51 cm (length x width x height) - Weight 19 kg
Wall-mounted closing unit dimensions: 53 x 53 x 50 cm (length x width x height) - Weight 27 kg
